UUI to REFERENCE

When inspecting a PCB, if you discover that a UUI image is more suitable as a reference than the current one, you have the option to convert it into a reference image with a single button click

UUI to REFERENCE button

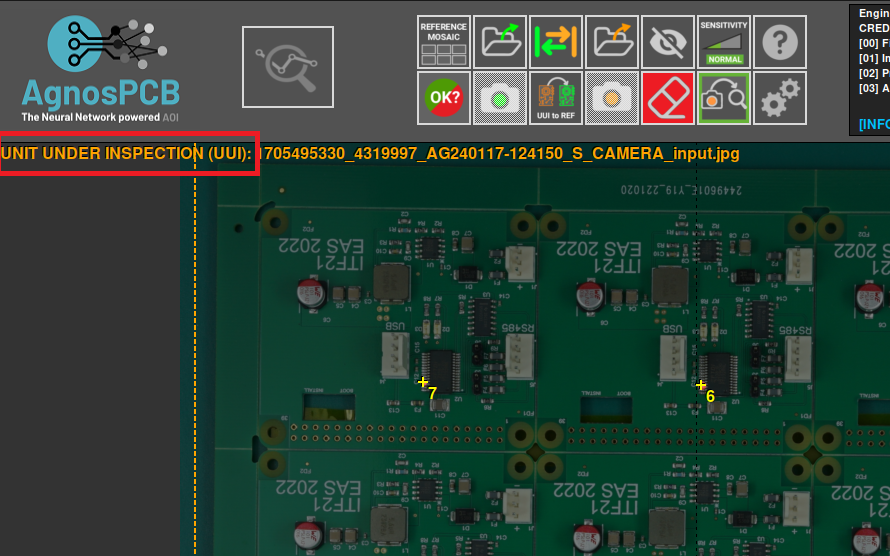

For example, in this image we have a UUI

UUI photo

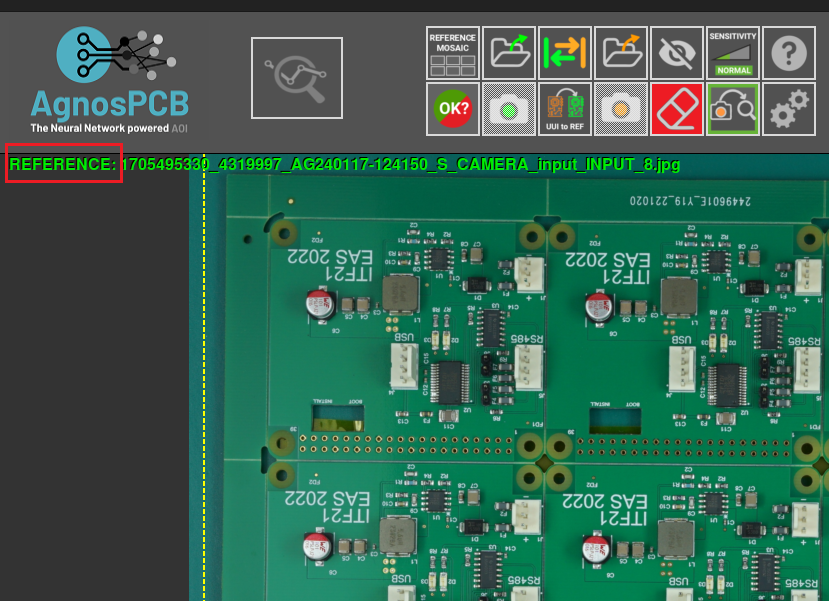

And now, after pressing the button ¨UUI to REFERENCE¨ now the same PCB is being used as REFERENCE

Same PCB as a REFERENCE photo
